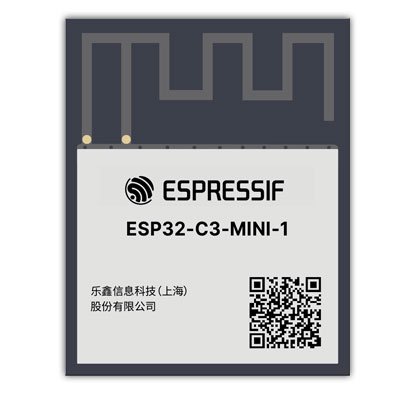

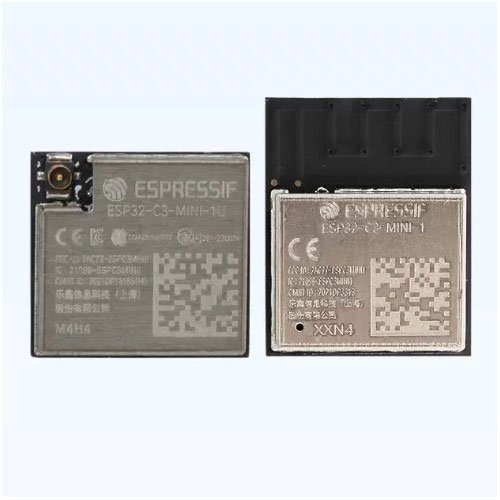

ESP32-C3-MINI-1/1U
Price range: $2.06 through $2.16
Description
Model : ESP32-C3-MINI-1/1U
Espressif ESP32-C3 Full-Function Chip Support
32-Bit RISC-V Single-Core 160MHz
PCB / IPEX Antenna
DC 3.3V/0.5A
2.4GHz Wi-Fi, Bluetooth 5.0
RISC-V 32-Bit Single-Core Processor
160MHz Main Frequency
Supports 2.4G Wi-Fi 4 and BLE 5
| Model Number | Flash | Operating Temp. (°C) |
Chip Version | Module Dimensions (mm) |
|---|---|---|---|---|
| ESP32-C3-MINI-1-N4X (Recommended) | 4 MB (Quad SPI) | -40 ~ 85 | v1.1 | 13.2 × 16.6 × 2.4 |
| ESP32-C3-MINI-1-H4X (Recommended) | -40 ~ 105 | v1.1 | ||
| ESP32-C3-MINI-1-H8X | 8 MB (Quad SPI) | -40 ~ 105 | v1.1 | |
| ESP32-C3-MINI-1-N4 (NRND) | 4 MB (Quad SPI) | -40 ~ 85 | v0.4 | |
| ESP32-C3-MINI-1-H4 (NRND) | -40 ~ 105 | v0.4 | ||
| ESP32-C3-MINI-1-H4-AZ (NRND) | -40 ~ 105 | v0.4 |
| Model Number | Flash | Operating Temp. (°C) |
Chip Version | Module Dimensions (mm) |
|---|---|---|---|---|

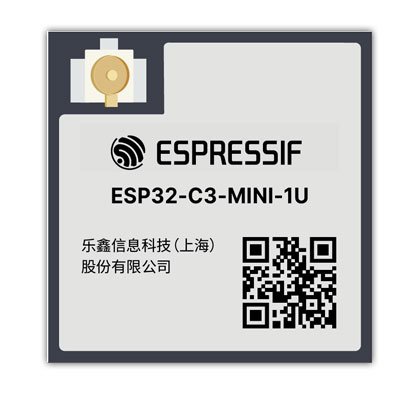

| ESP32-C3-MINI-1U-N4X (Recommended) | 4 MB (Quad SPI) | -40 ~ 85 | v1.1 | 13.2 × 12.5 × 2.4 |
| ESP32-C3-MINI-1U-H4X (Recommended) | -40 ~ 105 | v1.1 | ||
| ESP32-C3-MINI-1U-N4 (NRND) | -40 ~ 85 | v0.4 | ||
| ESP32-C3-MINI-1U-H4 (NRND) | -40 ~ 105 | v0.4 |
Smart Home
HMI
Consumer electronics products
Healthcare
Audio equipment
Smart Agriculture
Camera video stream transmission
Additional information
| Model | ESP32-C3-MINI-1-N4, ESP32-C3-MINI-1U-N4 |
|---|
