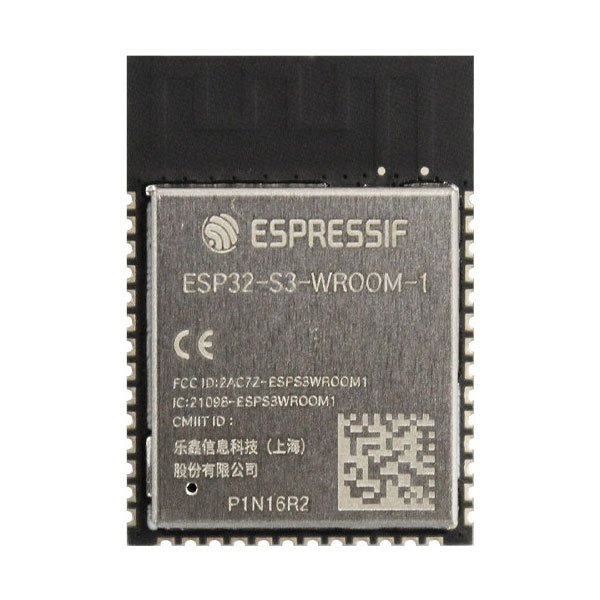

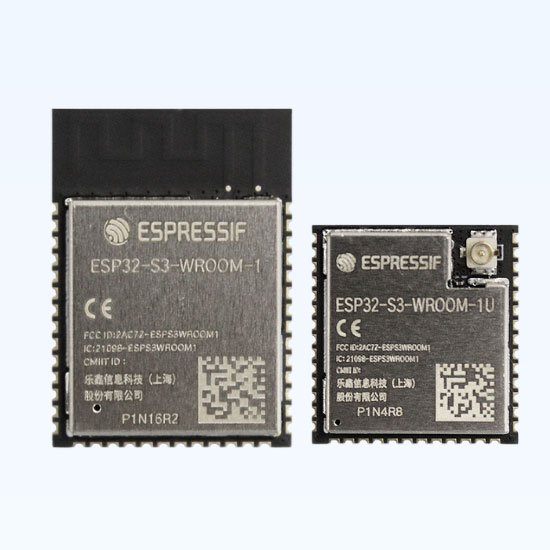

ESP32-S3-WROOM-1/1U
Price range: $3.40 through $3.74
Description
Model : ESP32-S3-WROOM-1/1U
Espressif ESP32‑S3 SoC – Full Feature Set
32bit Xtensa LX7 Dual-Core 240MHz
Power:DC 3.3V10.5A
GPIO: 36
2.4GHz Wi-Fi, Bluetooth 5.0
Xtensa® 32‑bit LX7 Dual‑Core Processor
Up to 240 MHz
Supports 2.4GHz Wi‑Fi 4 & Bluetooth 5 (BLE)

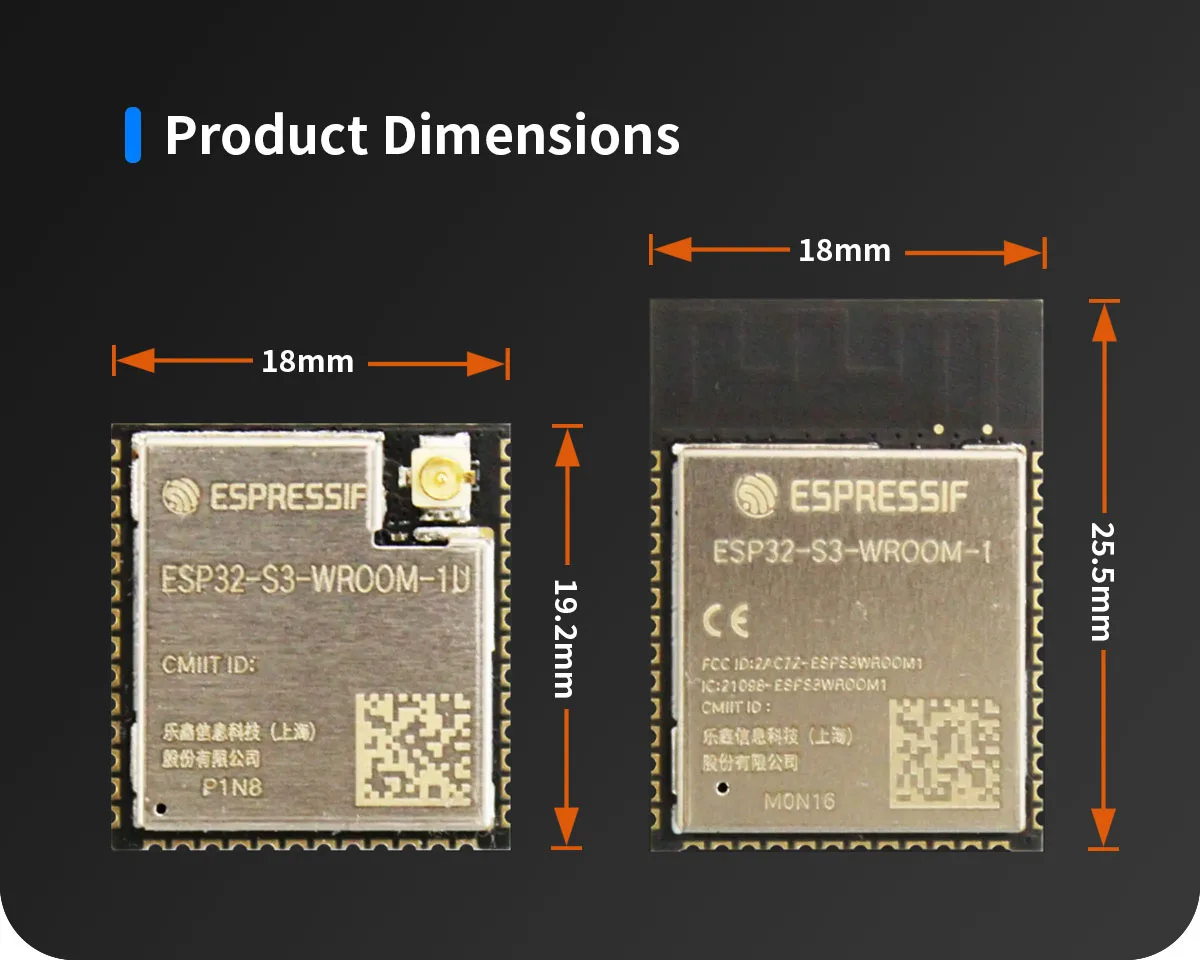

| Model Number | Flash | PSRAM | Operating Temperature (°C) | Module Dimensions (mm) |
|---|---|---|---|---|

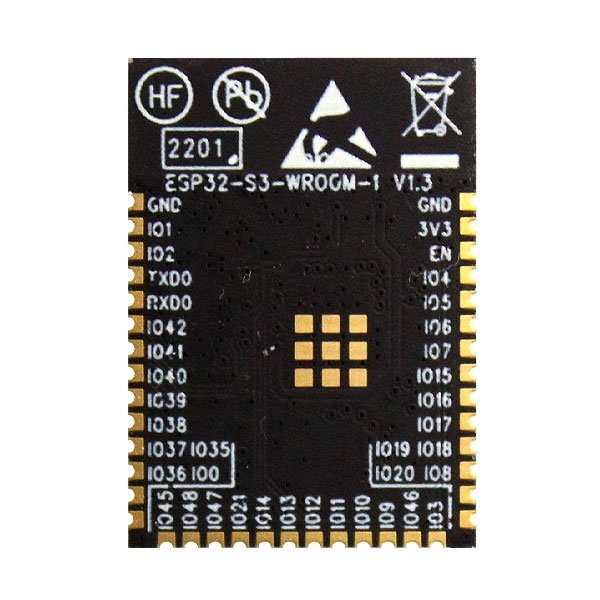

| ESP32-S3-WROOM-1-N4 | 4 MB (Quad SPI) | – | -40 ~ 85 | 18.0 x 25.5 x 3.1 |
| ESP32-S3-WROOM-1-N8 | 8 MB (Quad SPI) | – | -40 ~ 85 | |
| ESP32-S3-WROOM-1-N16 | 16 MB (Quad SPI) | – | -40 ~ 85 | |
| ESP32-S3-WROOM-1-H4 | 4 MB (Quad SPI) | – | -40 ~ 105 | |
| ESP32-S3-WROOM-1-N4R2 | 4 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1-N8R2 | 8 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1-N16R2 | 16 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1-N4R8 | 4 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1-N8R8 | 8 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1-N16R8 | 16 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1-N16R16VA | 16 MB (Quad SPI) | 16 MB (Octal SPI) | -40 ~ 65 |
| Model Number | Flash | PSRAM | Operating Temp. (°C) |
Module Dimensions (mm) |
|---|---|---|---|---|

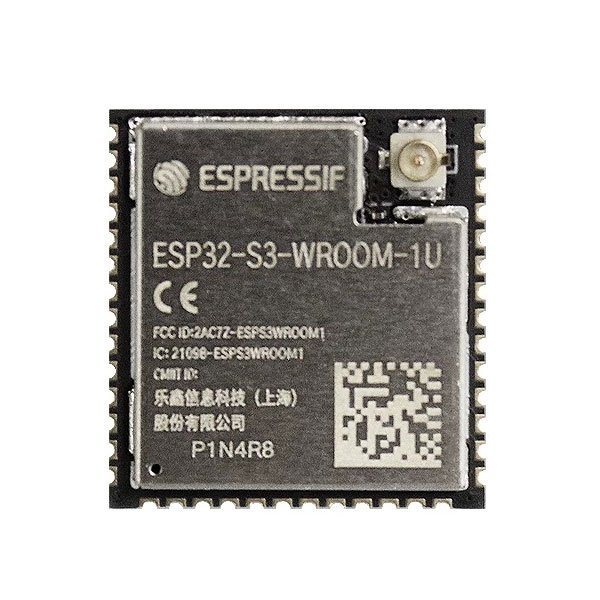

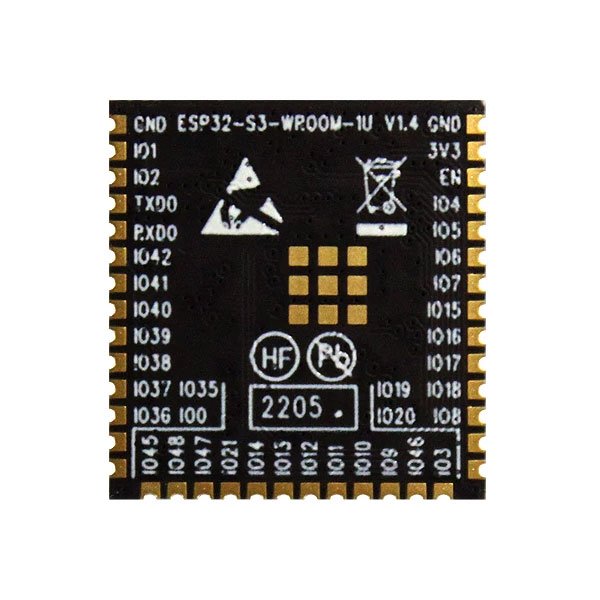

| ESP32-S3-WROOM-1U-N4 | 4 MB (Quad SPI) | – | -40 ~ 85 | 18.0 x 19.2 x 3.2 |
| ESP32-S3-WROOM-1U-N8 | 8 MB (Quad SPI) | – | -40 ~ 85 | |
| ESP32-S3-WROOM-1U-N16 | 16 MB (Quad SPI) | – | -40 ~ 85 | |
| ESP32-S3-WROOM-1U-H4 | 4 MB (Quad SPI) | – | -40 ~ 105 | |
| ESP32-S3-WROOM-1U-N4R2 | 4 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1U-N8R2 | 8 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1U-N16R2 | 16 MB (Quad SPI) | 2 MB (Quad SPI) | -40 ~ 85 | |
| ESP32-S3-WROOM-1U-N4R8 | 4 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1U-N8R8 | 8 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1U-N16R8 | 16 MB (Quad SPI) | 8 MB (Octal SPI) | -40 ~ 65 | |
| ESP32-S3-WROOM-1U-N16R16VA | 16 MB (Quad SPI) | 16 MB (Octal SPI) | -40 ~ 65 |
Smart Home
HMI
Consumer electronics products
Healthcare
Audio equipment
Smart Agriculture
Camera video stream transmission
Additional information
| Model | ESP32-S3-WROOM-1-N16R8, ESP32-S3-WROOM-1-N4R8, ESP32-S3-WROOM-1-N8R8, ESP32-S3-WROOM-1U-N16R2 |
|---|
